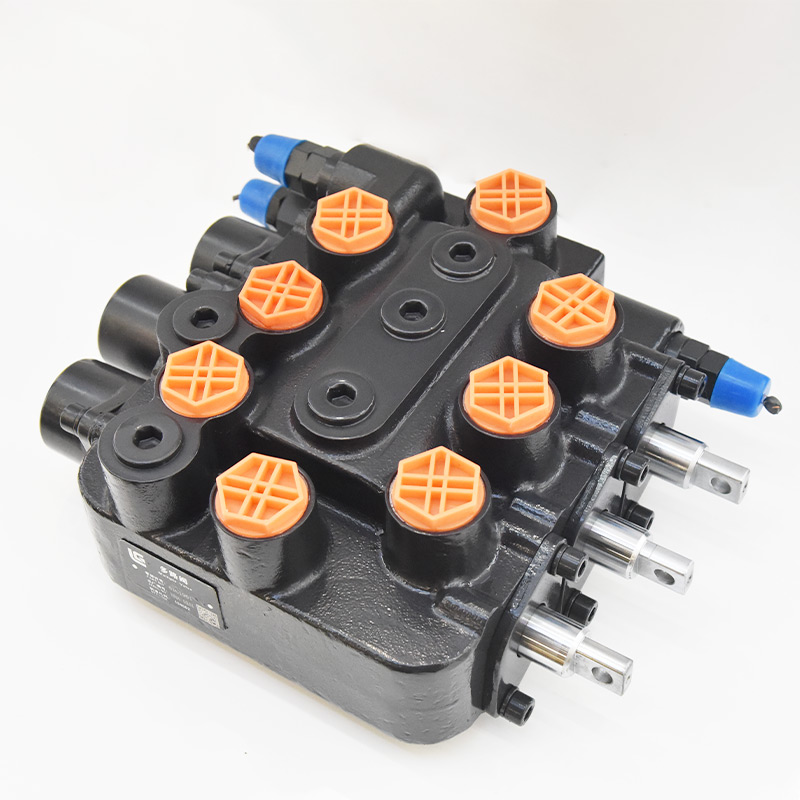

Innovation in hydraulic systems for construction machinery: Multi Way Directional Valve floating function enables precise control
In the field of construction machinery, a key technological innovation—the floating function of Multi Way Directional Valve—is quietly improving the operational efficiency and precision of various types of equipment.
The floating function of a multi-way valve means that when the control valve is in a certain switching position, the two working ports of the valve are unloaded and pressure-free, allowing the hydraulic cylinder piston to move freely in response to external forces.
This function is crucial for bulldozers, loaders, and other equipment during leveling operations. The bucket or blade can automatically float according to the unevenness of the ground, allowing for easy and efficient leveling.
The core value of floating function
In the hydraulic control system of construction machinery, the Multi Way Directional Valve acts as the "nerve center." It directs the direction, flow rate, and pressure of the hydraulic oil, thereby controlling the movement of the actuators.
Traditional Multi Way Directional Valve typically have basic functions such as neutral, raise, and lower positions. The advanced floating position was initially implemented primarily through mechanical limiters, which were limited by complex structures and low control accuracy.
With technological advances, modern Multi Way Directional Valve use pilot oil circuits and control valves to precisely control valve stem movement, achieving even higher-precision floating control.
This allows equipment such as bulldozers to automatically raise and lower the bucket during leveling operations, significantly improving operational efficiency and quality.
Future Outlook
With industrial development and technological advancements, the requirements for hydraulic systems in construction machinery are increasing. As the core control component of a hydraulic system, the performance of multi-way valves directly impacts the overall operating efficiency, precision, and energy consumption of the entire machine.
The technological development of floating functions is showing trends such as electro-hydraulic proportional control and CAN bus digital control.
These technologies achieve closed-loop displacement control through valve spool displacement feedback, further improving flow control accuracy and meeting the increasingly complex electro-hydraulic control systems required for large-scale equipment.
With the application of electro-hydraulic proportional technology and CAN bus digital control, the control accuracy and response speed of the Multi Way Directional Valve float function have been significantly improved.
Experts say this technology not only solves the problem of complex hydraulic system movements under flow saturation conditions, but also provides excellent micro-motion characteristics and controllability, meeting the needs of large equipment manufacturers for high-precision flow control and multi-functional integration.
In the future, as the trend towards intelligent and energy-saving development in the construction machinery field deepens, the Multi Way Directional Valve float function will continue to evolve, providing technical support for the precise operation of more equipment.
