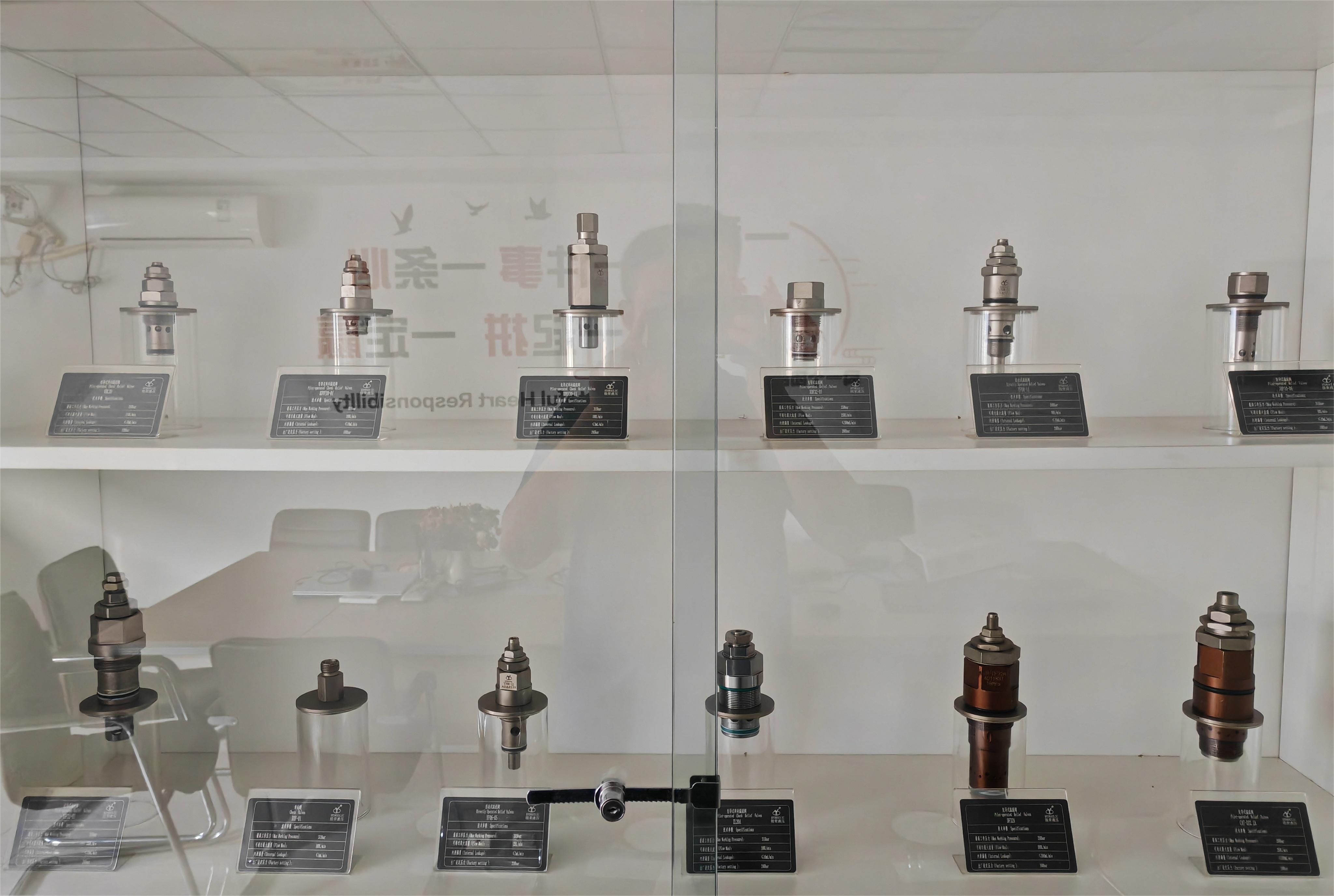

Threaded Cartridge Safety Valve: A Compact Guardian of Hydraulic Systems

Pressure safety is crucial in hydraulic and fluid power systems. The threaded cartridge safety valve is a key safety component designed for this purpose. It acts as an "emergency exit" within the system, silently safeguarding the stability and safety of the entire circuit.

A threaded cartridge safety valve is a pressure relief valve that is threaded directly onto a valve block or integrated component. Its core function is the same as that of a traditional safety valve: when system pressure rises abnormally and exceeds a preset safety limit, the valve automatically opens, releasing a portion of the fluid (usually hydraulic oil) back to the tank, thereby limiting the system pressure to a safe range. This effectively prevents damage to components such as pumps, actuators, or piping due to overload, thereby avoiding system failure and safety accidents.

Compared to traditional flanged or in-line safety valves, its greatest advantage lies in its high degree of integration and compactness. This design allows it to be directly embedded into a carefully designed hydraulic valve block, eliminating complex external piping connections. This not only significantly saves installation space and reduces the risk of leaks, but also makes the entire hydraulic system more compact, cleaner, and lighter.

Furthermore, threaded cartridge valves feature standardized mounting holes and specifications, allowing designers to flexibly design layouts and integrate multifunctional circuits. Maintenance and replacement are also relatively simple; simply unscrewing the valve from the valve block significantly reduces ongoing maintenance costs and time.

Due to their superior performance and convenience, threaded cartridge safety valves are widely used in mobile and stationary hydraulic systems, including those in construction machinery, agricultural machinery, marine and maritime applications, and industrial equipment, where space and weight are critical. Despite their compact size, they are the indispensable "safety heart" of modern high-performance hydraulic systems, ensuring the precise and safe operation of complex power systems with their rapid response and reliable operation.
